README

Online Documentation.

IP lookup, with longest prefix match, for IPv4, IPv6 prefixes (and others).

Iptrie manages multiple Radix trees, one for each type of Pfx.t/0 prefix used as determined by their maxlen property. That way, IPv4 prefixes (maxlen: 32) use a different radix tree as opposed to e.g. IPv6 (maxlen: 128).

Iptrie has a bias towards IPv4 and IPv6 since it uses Pfx to convert arguments to a Pfx.t/0 struct. So, doing other types of prefixes will require the actual Pfx.t/0 structs as arguments for the various Iptrie functions.

Like Pfx, Iptrie tries to mirror the representation of results to the argument(s) given, if possible.

IPv4/IPv6

iex> ipt = new()
...> |> put("1.2.3.0/24", "v4")
...> |> put("128.0.0.0/8", "v4-128")
...> |> put("acdc:1975::/32", "T.N.T")
...> |> put("acdc:1978::/32", "Powerage")
...> |> put("0.0.0.0/0", "v4 default")
...> |> put("::/0", "no dynamite")
iex>
iex> lookup(ipt, "1.2.3.128")
{"1.2.3.0/24", "v4"}
iex> lookup(ipt, "acdc:1975::")
{"acdc:1975:0:0:0:0:0:0/32", "T.N.T"}
iex>
iex> # separate trees, separate default routes
iex> lookup(ipt, "10.11.12.13")
{"0.0.0.0/0", "v4 default"}
iex> lookup(ipt, "abba::")
{"0:0:0:0:0:0:0:0/0", "no dynamite"}
iex>
iex> # visualize the IPv4 & IPv6 radix trees
iex> kv32 = fn {k, v} -> "#{Pfx.new(k, 32)}<br/>#{v}" end
iex> radix(ipt, 32)
...> |> Radix.dot(label: "IPv4", kv_tostr: kv32)
...> |> (&File.write("img/ipv4.dot", &1)).()
iex> kv128 = fn {k, v} -> "#{Pfx.new(k, 128)}<br/>#{v}" end
iex> radix(ipt, 128)
...> |> Radix.dot(label: "IPv6", kv_tostr: kv128)
...> |> (&File.write("img/ipv6.dot", &1)).()

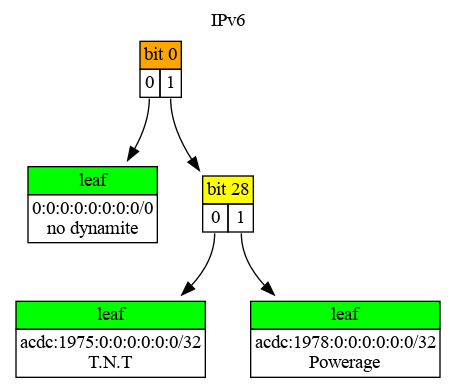

Where the radix trees for the IP prefixes look like:

Others

Iptrie can also be used to do longest prefix match lookup for other types of prefixes, like e.g. MAC addresses:

iex> ipt = new()
...> |> put(%Pfx{bits: <<0x00, 0x22, 0x72>>, maxlen: 48}, "American Micro-Fuel Device")
...> |> put(%Pfx{bits: <<0x00, 0xd0, 0xef>>, maxlen: 48}, "IGT")
...> |> put(%Pfx{bits: <<0x08, 0x61, 0x95>>, maxlen: 48}, "Rockwell Automation")
iex>
iex> lookup(ipt, %Pfx{bits: <<0x00, 0xd0, 0xef, 0xaa, 0xbb>>, maxlen: 48})
{%Pfx{bits: <<0x00, 0xd0, 0xef>>, maxlen: 48}, "IGT"}
iex>
iex> # longest match for partial prefix
iex> lookup(ipt, %Pfx{bits: <<0x08, 0x61, 0x95, 0x01>>, maxlen: 48}) |> elem(1)
"Rockwell Automation"
iex>
iex> kv48 = fn {_k, v} -> "#{v}" end
iex> radix(ipt, 48)
...> |> Radix.dot(label: "MAC OUI", kv_tostr: kv48)
...> |> (&File.write("img/mac.dot", &1)).()

Iptrie does not automatically recognize MAC addresses in string format (like 00-D0-EF-AA-BB-CC-DD-EE or 00:D0:EF:AA:BB:CC:DD:EE), so the actual Pfx.t/0 structs must be used in the various IPtrie functions.

Since prefixes are stored in specific radix trees based on the maxlen of given prefix, you could also mix IPv4, IPv6 and MAC prefixes and possibly others, in a single Iptrie.

Installation

Iptrie can be installed by adding iptrie to your list of dependencies in mix.exs:

def deps do
  [
    {:iptrie, "~> 0.3.0"}
  ]
end

Repositiory is on github.
