Overview

The overall architecture of ProcessHub is designed to provide a reliable and resilient distributed system that can handle network partitions, node failures, process migrations,

This is mostly achieved by asynchronous and non-blocking operations, and by using the Supervisor behavior to monitor and restart processes when they die unexpectedly.

ProcessHub is eventually consistent meaning that it can guarantee that the state of the system will eventually converge to a consistent state. This enables the system to be scalable and highly available.

ProcessHub internally uses a event-driven communication and ability to define listeners/hooks. This enables some type of way to react to specific events such as process registration etc.

Most of the operations are carried out using special Task processes. These processes are started on demand by the ProcessHub.Coordinator process and are supervised by the Task.Supervisor.

The coordinator process is responsible for coordinating the operations and making sure that the operations are carried out in the correct order. This process is the heart of the system and is responsible for the overall functionality of the system.

Supervision tree

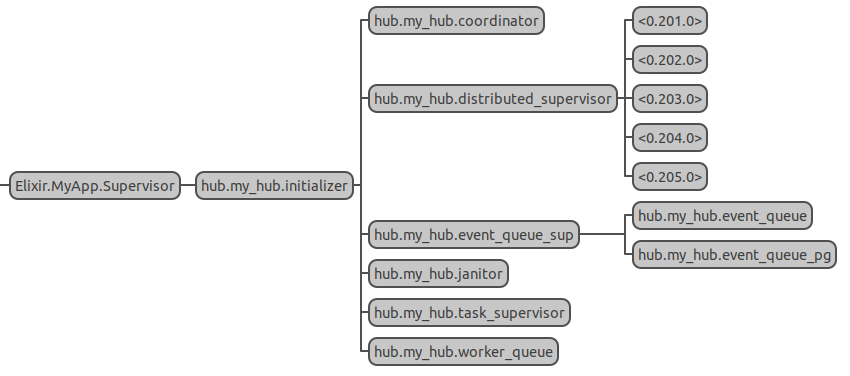

supervision_tree

Processes

  • coordinator - The coordinator process is responsible for coordinating the operations and making sure that the operations are carried out in the correct order. This process is the heart of the system and is responsible for the overall functionality of the system. All actions are dispatched to the coordinator process who then delegates the work to the correct handler process.

  • distributed_supervisor - The distributed supervisor process is responsible for starting, stopping, and monitoring the processes in its local cluster. It uses the Supervisor behavior to monitor the processes and restart them when they die unexpectedly.

  • event_queue_sup (external library) - The event queue supervisor starts and supervises the event queue processes. The event queue is used to dispatch events within the Erlang distribution system to all nodes in the cluster. This provides a way to communicate between nodes and synchronize the operations in the system. These processes are started by external library blockade.

  • janitor - The janitor process is responsible for cleaning up the system and removing any stale data. It periodically checks the system for any stale data and removes it to keep the system clean and efficient.

  • task_supervisor - The task supervisor process is responsible for supervising the task processes that are started on demand by the coordinator process. These processes are used to carry out the operations in the system and are supervised by the task supervisor process.

  • worker_queue - The worker queue process is used to synchronize the operations that may introduce race conditions.

Cluster Discovery and Formation

ProcessHub monitors connecting and disconnecting nodes and forms a cluster automatically from the connected nodes that share the same hub_id. It's not required to start the ProcessHub on all nodes in the cluster.

Resilience and Reliability

ProcessHub uses the Supervisor behavior and leverages the features that come with it. Each hub starts its own ProcessHub.DistributedSupervisor process, which is responsible for starting, stopping, and monitoring the processes in its local cluster.

When a process dies unexpectedly, the ProcessHub.DistributedSupervisor will restart it automatically.

ProcessHub also takes care of validating the child_spec before starting it and makes sure it's started on the right node that the process belongs to. If the process is being started on the wrong node, the initialization request will be forwarded to the correct node.

Locking Mechanism

ProcessHub utilizes the :blockade library to provide event-driven communication and a locking mechanism. It locks the local event queue by increasing its priority for some operations. This allows the system to queue events and process them in order to preserve data integrity. Other events can be processed once the priority level is set back to default.

To avoid deadlocks, the system places a timeout on the event queue priority and restores it to its original value if the timeout is reached.
