Use assets

In the previous tutorial you learned how to describe UI with Emerge.UI.

The next step is to bring real media into that UI: images, SVGs, background images, and custom fonts.

Assets in Emerge are still declarative. You describe a source in your UI tree, and the renderer resolves it for you.

Static assets live under priv/

Logical asset paths resolve from your app's priv/ directory.

For example:

• priv/images/logo.png
• priv/images/hero.jpg
• priv/icons/check.svg
• priv/fonts/Inter-Regular.ttf

You can refer to those files by logical path string, or you can use the ~m sigil for compile-time verification.

Start with logical path strings

The simplest source form is a logical path string:

image([width(px(120)), height(px(120))], "images/logo.png")

svg([width(px(24)), height(px(24))], "icons/check.svg")

el(
  [
    width(px(320)),
    height(px(180)),
    Background.image("images/hero.jpg", fit: :cover)
  ],
  none()
)

Logical paths are resolved from the otp_app you pass to EmergeSkia.start/1 or that the viewport infers for you.

Prefer ~m in app code

Import Emerge.Assets.Path in the module where you describe UI:

defmodule MyApp.UI do
  use Emerge.Assets.Path, otp_app: :my_app
  use Emerge.UI
end

Then you can write compile-time verified paths:

~m"images/logo.png"
~m"images/hero.jpg"
~m"icons/check.svg"

~m verifies that the file exists under priv/ at compile time and tracks it as an external resource.

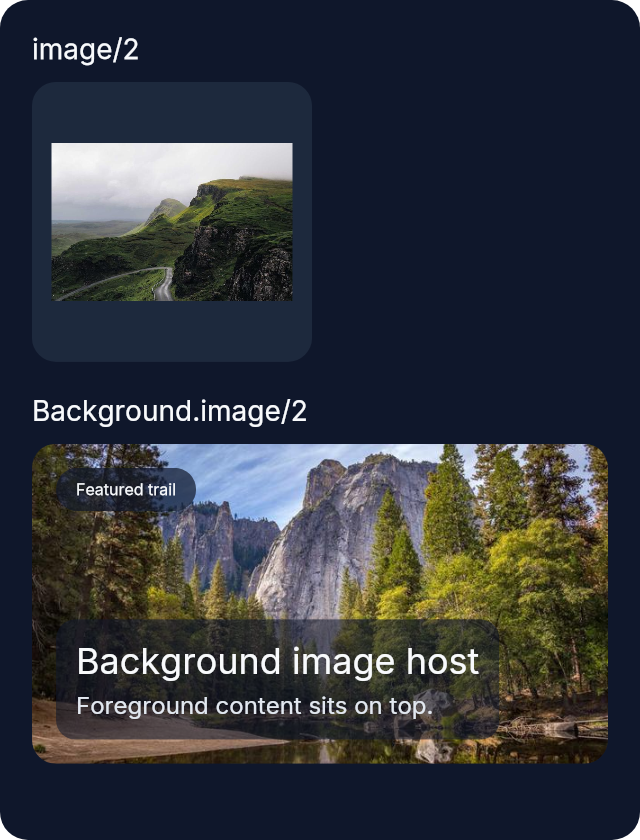

Show an image and a background image

This example uses a normal image element and a background image on a framed element:

column(
  [
    width(fill()),
    height(fill()),
    padding(16),
    spacing(16),
    Background.color(color(:slate, 900)),
    Border.rounded(14)
  ],
  [
    column([spacing(8)], [
      el([Font.color(color(:slate, 50)), Font.size(14)], text("image/2")),
      el(
        [
          padding(10),
          Background.color(color(:slate, 800)),
          Border.rounded(12)
        ],
        image([width(px(120)), height(px(120)), Border.rounded(10)], "sample_assets/static.jpg")
      )
    ]),
    column([spacing(8)], [
      el([Font.color(color(:slate, 50)), Font.size(14)], text("Background.image/2")),
      el(
        [
          width(px(288)),
          height(px(160)),
          padding(12),
          Background.image("sample_assets/fallback.jpg", fit: :cover),
          Border.rounded(12)
        ],
        column([height(fill()), spacing(8)], [
          el(
            [
              padding_xy(10, 6),
              Background.color(color_rgba(15, 23, 42, 0.7)),
              Border.rounded(999),
              Font.color(color(:slate, 50))
            ],
            text("Featured trail")
          ),
          el(
            [
              align_bottom(),
              padding(10),
              Background.color(color_rgba(15, 23, 42, 0.58)),
              Border.rounded(10),
              Font.color(color(:slate, 50))
            ],
            column([spacing(4)], [
              el([Font.size(18)], text("Background image host")),
              el([Font.size(12), Font.color(color(:slate, 200))], text("Foreground content sits on top."))
            ])
          )
        ])
      )
    ])
  ]
)

image/2 creates an image element.

Background.image/2 paints an image inside another element's frame.

Use SVG files

Use svg/2 when the source is an SVG:

row(
  [
    width(fill()),
    height(fill()),
    padding(16),
    spacing(12),
    Background.color(color(:slate, 900)),
    Border.rounded(14)
  ],
  [
    el(
      [
        width(fill()),
        padding(12),
        Background.color(color(:slate, 800)),
        Border.rounded(12)
      ],
      column([center_x(), spacing(8)], [
        svg([width(px(48)), height(px(48))], "sample_assets/template_cloud.svg"),
        el([Font.color(color(:slate, 50)), Font.size(13)], text("Original SVG"))
      ])
    ),
    el(
      [
        width(fill()),
        padding(12),
        Background.color(color(:slate, 800)),
        Border.rounded(12)
      ],
      column([center_x(), spacing(8)], [
        svg(
          [width(px(48)), height(px(48)), Svg.color(color(:sky, 500))],
          "sample_assets/template_cloud.svg"
        ),
        el([Font.color(color(:slate, 50)), Font.size(13)], text("Svg.color/1"))
      ])
    )
  ]
)

By default, SVGs keep their original colors.

Use Svg.color/1 when you want template-style tinting.

Background image fit modes

Background.image/2 defaults to fit: :cover.

Use:

• fit: :cover to fill the frame and crop if needed
• fit: :contain to keep the whole image visible
• Background.tiled/1, Background.tiled_x/1, and Background.tiled_y/1 for repeat modes

Example:

el(
  [
    width(px(220)),
    height(px(120)),
    Background.image("images/logo.png", fit: :contain),
    Border.rounded(12)
  ],
  none()
)

Configure fonts at renderer startup

Fonts work a little differently from images.

Images and SVGs are referenced directly in the UI tree.

Fonts are registered once when the renderer starts, and then selected in UI code by family, weight, and italic.

If you want multiple variants of the same family, register each variant:

{:ok, renderer} =
  EmergeSkia.start(
    otp_app: :my_app,
    title: "My App",
    assets: [
      fonts: [
        [family: "Inter", source: "fonts/Inter-Regular.ttf", weight: 400],
        [family: "Inter", source: "fonts/Inter-Bold.ttf", weight: 700],
        [family: "Inter", source: "fonts/Inter-Italic.ttf", weight: 400, italic: true]
      ]
    ]
  )

After that, use the configured family in UI code:

column([spacing(8)], [
  el([Font.family("Inter"), Font.size(22), Font.bold()], text("Release notes")),
  el([Font.family("Inter"), Font.regular()], text("Design system updated")),
  el([Font.family("Inter"), Font.italic(), Font.color(color(:slate, 300))], text("Beta"))
])

The key idea is:

• family selects the registered family
• Font.bold/0 or Font.weight(700) selects the bold variant
• Font.italic/0 selects the italic variant

If you want a family to support multiple weights or italics, register those variants in assets.fonts.

Runtime filesystem paths

Emerge also supports runtime filesystem paths:

image([width(px(160)), height(px(96))], {:path, "/data/photos/photo.jpg"})

Runtime path loading is disabled by default.

Enable it only when needed, and use an explicit allowlist in EmergeSkia.start/1:

assets: [
  runtime_paths: [
    enabled: true,
    allowlist: ["/data/photos"],
    follow_symlinks: false
  ]
]

What happens while assets load

Asset loading is asynchronous.

While a source is still loading, Emerge shows a loading placeholder. If loading fails, Emerge shows a failed placeholder.

You do not need to block rendering while assets are being resolved.
