View Source Lenses move pointers

The word "lens" is a metaphor. We're supposed to gain some understanding of what this particular software construct does, based on our experience with physical lenses in the real world.

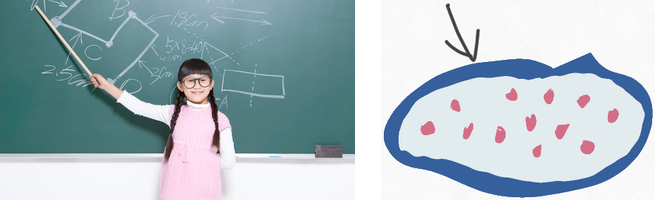

I never found the metaphor helpful when learning lenses. And since lenses have the reputation of being hard to learn, I'm happy to abandon it (while keeping the name everyone uses). To me, a more helpful metaphor is the pointer. In the picture below, you see someone using a slim wooden stick to point to something on a blackboard. The other picture shows an arrow – a pointer – pointing at a blob with smaller blobs within it. These are – metaphorically – the same action.

1

The right-hand image is of a data structure with smaller data structures within it. I'm going to call the bigger structure a container. The contained structures may also be containers that have their own internal structure. Or they may be "atomic" values like integers or atoms.

The container has something pointing at it. Perhaps that's a variable it's bound to via pattern matching:

{:ok, container} = make_that_container(...)

Perhaps the pointer indicates our container is part of a larger container, and the pointer represents that you can go from the larger to the smaller, perhaps via constructs like these:

larger.smaller
Map.get(larger, :smaller)
Enum.at(larger, 3)

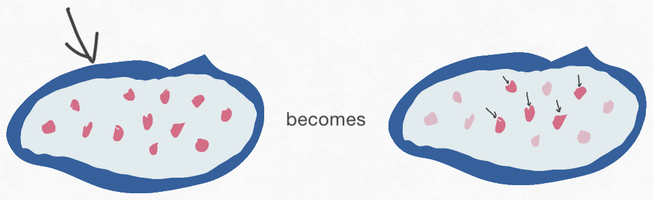

What a lens does is transform one set of pointers to another. It takes a set of pointers to containers as its input. From them, it produces a new set of pointers, typically to values within the original containers. Like this:

The lens is the "becomes" in the picture: the creation of the five pointers on the right from the single pointer on the left. That is, a lens is a function:

iex> use Lens2     # sets up aliases `Lens` and `Deeply`
iex> Lens.at(3)
#Function<1.126734921/3 in Lens2.Lenses.Indexed.at/1>

... and Lens.at is a function-making (or "higher order") function. I'm going to give such higher-order functions the name "lens makers". It's kind of an ugly name, but it's important to remember the difference between a lens function and the function that makes it.

Except when you're writing a new lens from scratch, your code never calls a lens function directly. Instead, your code passes the lens to some other function that does that work. As far as you're concerned, the lens is no different than the 3 in Enum.at(container, 3) or the :a in Map.key(container, :a)

To peek ahead, the functions that use lenses are in the Lens2.Deeply package (usually aliased as Deeply). Here's one:

iex> Deeply.update([0, 1, 2], Lens.at(1), & &1 * 1111)
[0, 1111, 2]

I'm going to call such functions operations because they use lenses to operate on containers.

Lenses are all about "zero, one, many"

Functions like Map.get/3, Enum.at/2, and so on are about a single value within a container. Their conceptual extension to functions like get_in/2 share that assumption. There are exceptions like Access.all/0 or Access.slice/1, but I think it fair to say those are special cases: both conceptually and in common usage.

Lenses have a different base assumption: their code expects to be both consuming and producing multiple pointers: maybe just one, maybe ten, maybe even zero.

Let's look at some examples.

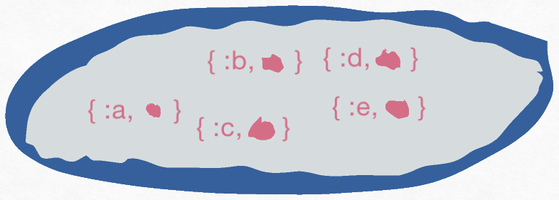

Here's a picture of a struct or a map or maybe a keyword list.

The container contains a set of {key, value} tuples. In the case of a keyword list, that's the literal, concrete representation. Maps might have a different internal structure, but the values within a map are always presented to the outside world as a tuple. Like this:

iex> for elt <- %{a: 1, b: 2}, do: IO.inspect(elt)
{:a, 1}
{:b, 2}

To get a lens that converts a pointer-to-Map into pointers to all the values, you do this:

iex> lens = Lens.map_values

(All my examples implicitly use Lens2, which provides the Lens alias so that I don't have to write the function's real name, Lens2.Lenses.Keyed.map_values/0.)

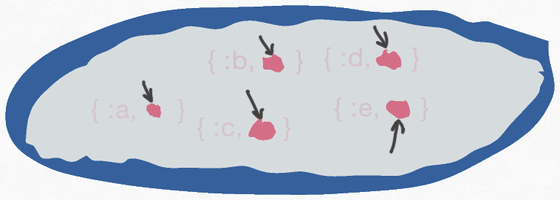

When it's used, the lens will produce these pointers for the container I showed above:

You can use that lens to set every element in the container by wrapping the lens in a singleton list and passing it to put_in/3:

iex> map = %{a: 1, b: 2, c: 3, d: 4, e: 5}
iex> put_in(map, [lens], :NEW)
                 ^^^^^^
%{c: :NEW, a: :NEW, d: :NEW, e: :NEW, b: :NEW}
     ^^^^     ^^^^     ^^^^     ^^^^     ^^^^

Similarly, you can use the lens with get_in/2 and update_in/3):

iex> get_in(map, [lens])
[3, 1, 4, 5, 2]
iex> update_in(map, [lens], & &1 * 1111)
%{c: 3333, a: 1111, d: 4444, e: 5555, b: 2222}

(I'll note here that Access.all/0 can only be used on lists, so you can't use out-of-the-box Elixir to do what we just did – except by coding manually the function that Lens2.Lenses.Keyed.map_values/0 gives you for free.

Having to wrap the lens in a list is a little annoying, so you can use functions from Lens2.Deeply instead. (There are other reasons to use them, which I'll cover later.)

Here's Lens2.Deeply.put/3:

iex> Deeply.put(map, lens, :NEW)
%{c: :NEW, a: :NEW, d: :NEW, e: :NEW, b: :NEW}

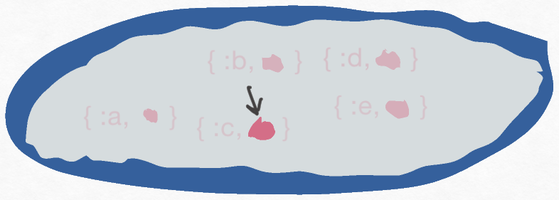

Lens.map_values/0 points to all the map's values. Unsurprisingly, you can point to just one value instead:

iex> lens = Lens.key(:c)

And then you can update only :c's value:

iex> Deeply.update(map, lens, & 1111111*&1)
%{c: 3333333, a: 1, d: 4, e: 5, b: 2}

But let's see what happens if we use this new lens with get_in/2:

iex> get_in(map, [lens])
[3]

That's weird. We wouldn't expect a list from this:

iex> get_in(map, [:c])
3

... so why do we get it with a lens? It's because a lens used with get_in might point to multiple elements of the container, so it's always working internally with lists. If it treated singleton lists differently (by unwrapping them), calling code couldn't distinguish between a single value that is a list or a list of multiple values. So everything stays in a list.

To remind you that you always get a list, the Deeply equivalent to get_in/2 is named Lens2.Deeply.get_all/2. I apologize in advance for the number of times you'll habitually type Deeply.get(...) and then be annoyed by this compiler error:

 Lens2.Deeply.get/2 is undefined or private. Did you mean:

       * get_all/2
       * get_only/2

Note Lens2.Deeply.get_only/2. If you're really truly sure you'll get a singleton list, you can use it to unwrap the value for you. If it's not a singleton list, get_only will raise an error.

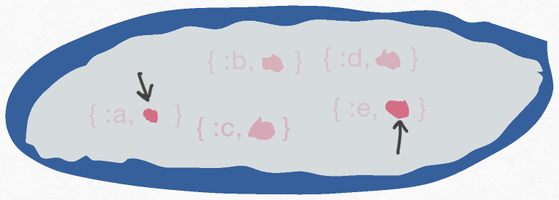

As a final example, you can point at a subset of the values:

iex> lens = Lens.keys([:a, :e])
iex> Deeply.get_all(map, lens)
[1, 5]

This has almost the same behavior as Map.take/2, except the latter returns a map:

iex> Map.take(map, [:a, :e])
%{a: 1, e: 5}
