View Source Pointing into nested containers

Lenses' claim to fame is the ability to descend through nested data structures in a variety of ways, for a variety of structures. This page is about how you use them to do that.

Composing lens makers

Lens-creating functions can be combined using the pipe (|>) macro.

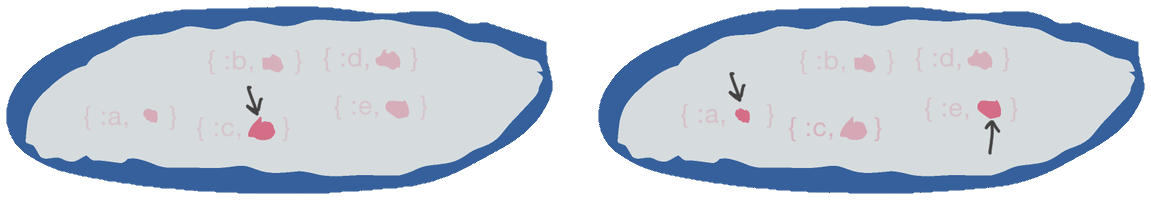

Suppose I've used Lens2 and so can refer to lens-maker functions with Lens. Here, again, are pictures showing the pointed-at values from applying, respectively, Lens.key(:c) and Lens.key([:a, :e]) to two copies of the same five-element map.

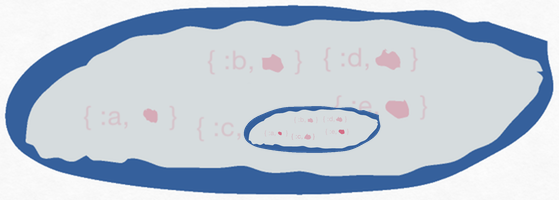

However, let's suppose the second map is actually embedded within the first, as the value of the key :c:

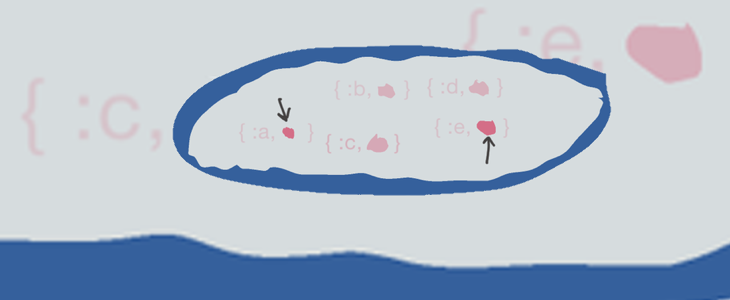

We want the pointers into that nested map, specifically at the values of the :a and :e keys:

That's easy to do by composing the Lens-making functions:

iex>  use Lens2
iex>  lens = Lens.key(:c) |> Lens.keys([:a, :e])
#Function<13.52599976/3 in Lens2.Lenses.Combine.seq/2>

Let's see the new composed lens at work.

iex>  map = %{a: 1, b: 2, c: 3, d: 4, e: 5}
%{c: 3, a: 1, d: 4, e: 5, b: 2}
iex>  nested = %{map | c: map}
%{c: %{c: 3, a: 1, d: 4, e: 5, b: 2}, a: 1, d: 4, e: 5, b: 2}

iex>  Deeply.get_all(nested, lens)
[1, 5]
iex>  Deeply.put(nested, lens, :NEW)
%{c: %{c: 3, a: :NEW, d: 4, e: :NEW, b: 2}, a: 1, d: 4, e: 5, b: 2}
                ^^^^           ^^^^

Another example: filtering pointers

Lenses don't have to descend into a data structure. Some lenses can remove pointers. For example, consider this map from numbers to names:

 iex> map = %{1 => "one", 2 => "two", 3 => "three"}

Lens.map_values will transform a pointer to the map into pointers to the values:

 iex> Deeply.get_all(map, Lens.map_values)
 ["one", "two", "three"]

We can use Lens2.Lenses.Filter.filter/1 (aliased to Lens.filter/1) to make a lens that retains only pointers to three-character names:

 iex> lens = Lens.map_values |> Lens.filter(& String.length(&1) == 3)

... and use it to boost those names' visibility:

iex> Deeply.update(map, lens, & String.upcase(&1))
%{1 => "ONE", 2 => "TWO", 3 => "three"}

How pipelining works

Normally, we think of a maker like Lens.keys as taking a single argument:

iex> Lens.keys[:a, :b]

However, each lens maker has a two-argument version whose first argument is a lens (not a lens maker). Therefore this pipeline:

iex> lens = Lens.map_values() |> Lens.keys([:a, :b])

is just syntactic sugar for this:

iex> lens = Lens.keys(Lens.map_values(), [:a, :b])

The second variant doesn't explicitly appear in API documentation because the documentation for dozens of lens makers would just say "This works the same as every other lens maker that takes a first lens argument."

If you're like me, pipelining can trip you up. A few times I've had a lens defined for a particular data structure, like this one for a two-level map:

iex> two_level_lens = Lens.key(:a) |> Lens.key(:aa)

... and then I have a list containing such maps and want a lens that will pick out all the :aa values of all the maps in the list:

iex> Deeply.get_all(list_of_maps, a_bigger_lens)
[1, 2]

The question is: how to easily make a_bigger_lens? Because I know that Lens2.Lenses.Enum.all/0 will give me all elements of a list, a simple composition should do it:

iex> a_bigger_lens = Lens.all |> two_level_lens.()

But oops:

** (BadArityError) #Function<19.51288540/3 in Lens2.Lenses.Combine.seq/2>
with arity 3 called with 1 argument
(#Function<1.73076862/3 in Lens2.Lenses.Enum.all/0>)

Here I'm passing a lens (constructed by the lens maker Lens.all) to another lens, not to a lens maker. That is, I'm passing the new lens to the result of Lens.key(:a) |> Lens.key(:aa), not – as I sometimes sloppily assume – to Lens.key/1.

The way to compose a new lens with an existing lens is to use Lens2.Lenses.Combine.seq/2:

iex> a_bigger_lens = Lens.all |> Lens.seq(two_level_lens)
# or, without the pipeline:
iex> a_bigger_lens = Lens.seq(Lens.all, two_level_lens)

In fact, the definition of the hidden two-argument version of, for example, Lens2.Lenses.Keyed.keys/1 uses Lens.seq/2:

def keys(previous_lens, key_list) do
  Lens.seq(previous_lens, keys(key_list))
end

Defining a lens maker

There are two ways to define a lens maker: coding one up from scratch, or composing existing lens makers. The first way is rare and more complicated, so I'll put that off and talk only about composition.

Suppose I frequently want to descend two levels into a nested map. Rather than write code like:

Lens.key(:level1_key) |> Lens.key(:level2_key)

... all over the place, I prefer to write a function that does the busywork for me:

MyLens.nested(:level1_key, :level2_key)

I could use a simple def:

def nested(level1, level2),
    do: Lens.key(level1) |> Lens.key(level2)

That works for making an isolated lens, but it doesn't work for composition:

iex> Lens.at(0) |> MyLens.nested(:a, :b)
** MyLens.nested/3 is undefined or private. Did you mean:

       * nested/2

The problem is that I haven't defined the extra-argument version. I could do that easily enough:

def nested(lens, level1, level2),
  do: Lens.seq(lens, nested(level1, level2)

However, that code will always always look the same, so there's a macro that defines both versions with a single definition:

defmaker nested(level1, level2),
  do: Lens.key(level1) |> Lens.key(level2)

(In the Lens 1 package, this is called deflens and you can still use that name if you prefer. But I'm hoping the name will help you keep in mind that you're not defining a lens but rather a lens maker, thus saving you from some mistakes. Also: in Lens 1, you define a lens maker from scratch with deflens_raw. I prefer def_raw_maker/2.)

You'll probably write a lot of lens makers of this sort.
