RPC client and server.

MeshxRpc can be considered as an alternative to Erlang OTP :erpc or :rpc modules.

Major differences between MeshxRpc and native :erpc modules:

• MeshxRpc is using custom binary communication protocol, hence it doesn't depend on Erlang distribution and can be used with any user provided TCP transport solution, especially service mesh data plane,
• MeshxRpc restricts incoming request function executability scope to single module associated with given RPC server. This way user has full control over RPC server functionality exposed to remote RPC clients, instead of allowing unrestricted access to remote as it is a case for OTP :erpc module.

MeshxRpc features:

• connection pooling,
• user customizable serialization functions,
• traffic chunking into smaller blocks of configurable maximum size to avoid IO socket blocking,
• optional transmission error detection with user configurable asynchronously executed message block checksum functions,
• reach per request telemetry metrics,
• request integrity protection with sequence numbers and node/connection references,
• primitive access control with optional preshared keys,
• load balancing and high availability provided by service mesh data plane,
• ability to run multiple RPC servers and/or clients on a single node.

MeshxRpc is designed to work primarily as mesh service and doesn't offer data encryption, authorization or authentication mechanisms as those are natively provided by service mesh environment.

Installation

Add :meshx_rpc and optionally :meshx_consul, :ranch and :poolboy to application dependencies:

# mix.exs
def deps do
  [
    {:meshx_rpc, "~> 0.1.0"},
    # if using :meshx_consul service mesh adapter add:
    {:meshx_consul, "~> 0.1.0"},
    # if running RPC client(s) add:
    {:poolboy, "~> 1.5"},
    # if running RPC server(s) using ranch 1.8.0 add:
    {:ranch, "~> 1.8.0"}
    # if running RPC server(s) using ranch 2.0 add:
    {:ranch, "~> 2.0", override: true}
  ]
end

Usage

Same mix project is used to implement both RPC server and RPC client to simplify examples.

Server and client nodes are started using custom command line argument rpc_server?:

• start server: iex --erl "-rpc_server? true",
• start client: iex --erl "-rpc_server? false".

Example 1. Shared Unix Domain Socket.

Requires ranch version 2.0.

Implement RPC server Example1.Server and client Example1.Client modules:

# lib/server.ex
defmodule Example1.Server do
  use MeshxRpc.Server,
    address: {:uds, "/tmp/meshx.sock"},
    telemetry_prefix: [:example1, __MODULE__]

  def echo(args), do: args
  def ping(_args), do: :pong
end

# lib/client.ex
defmodule Example1.Client do
  use MeshxRpc.Client,
    address: {:uds, "/tmp/meshx.sock"},
    telemetry_prefix: [:example1, __MODULE__],
    pool_opts: [size: 1, max_overflow: 0]

  def echo(args), do: call(:echo, args)
end

Both client and server connect to the same UDS socket at "/tmp/meshx.sock". For RPC client number of pool workers is limited to one, to reduce amount of telemetry events logged to terminal.

RPC client and server are started using application supervision tree by using their respective child specifications Example1.Client.child_spec() and Example1.Server.child_spec():

# lib/example1/application.ex
defmodule Example1.Application do
  use Application

  @impl true
  def start(_type, _args) do
    children =
      if rpc_server?() do
        MeshxRpc.attach_telemetry([:example1, Example1.Server])
        [Example1.Server.child_spec()]
      else
        MeshxRpc.attach_telemetry([:example1, Example1.Client])
        [Example1.Client.child_spec()]
      end

    Supervisor.start_link(children, strategy: :one_for_one, name: Example1.Supervisor)
  end

  defp rpc_server?() do
    case :init.get_argument(:rpc_server?) do
      {:ok, [['true']]} -> true
      _ -> false
    end
  end
end

Launch two terminals, start RPC server node in first terminal:

iex --erl "-start_epmd false" --erl "-rpc_server? true" -S mix

Start RPC client node in second terminal:

iex --erl "-start_epmd false" --erl "-rpc_server? false" -S mix

In both terminals similar telemetry event should be logged, here client side:

# [:example1, Example1.Client, :hsk] -> :ok
# local: %{conn_ref: "VPRihQ", node_ref: "nonode@nohost", svc_ref: "Elixir.Example1.Client"}
# remote: %{conn_ref: "wfyMQQ", node_ref: "nonode@nohost", svc_ref: "Elixir.Example1.Server"}
# ...

First line says that successful handshake (:hsk) was executed by [:example1, Example1.Client]. Next two log lines describe local and remote endpoints. Please check MeshxRpc.attach_telemetry/2 for details.

Execute RPC requests in client terminal:

# telemetry events removed
iex(1)> Example1.Client.call(:ping)
:pong
iex(2)> Example1.Client.echo("hello world")
"hello world"
iex(3)> Example1.Client.cast(:echo, "hello world")
:ok

When using OTP :erpc module it is possible to execute arbitrary function call on remote node, for example: :erpc.call(:other_node, File, :rm, ["/1/etc/*.remove_all"]). As mentioned earlier request execution scope in MeshxRpc is limited to single server module, here Example1.Server exposes only ping/1 and echo/1 functions. Requesting execution of not implemented (or not allowed) remote function will result in error:

iex(3)> Example1.Client.call(:rm, ["/1/etc/*.remove_all"])
{:error_rpc, {:undef,  [...]}}

Possible extension to this example could be: run RPC server and client nodes on different hosts and connect UDS sockets using ssh port forwarding.

Example 2. Service mesh using MeshxConsul.

Please check MeshxConsul package documentation for additional requirements and configuration steps necessary when using Consul service mesh adapter.

Starting user service providers and upstream clients connected to service mesh requires interaction with Consul used as external service mesh application. Running external API calls that can block, during supervision tree initialization is considered as bad practice. To start mesh service provider and mesh upstream client asynchronously, additional DynamicSupervisor will be created.

First implement RPC server Example2.Server and client Example2.Client modules:

# lib/server.ex
defmodule Example2.Server do
  use MeshxRpc.Server,
    telemetry_prefix: [:example2, __MODULE__]

  def echo(args), do: args
  def ping(_args), do: :pong
end

# lib/client.ex
defmodule Example2.Client do
  use MeshxRpc.Client,
    telemetry_prefix: [:example2, __MODULE__],
    pool_opts: [size: 1, max_overflow: 0]

  def echo(args), do: call(:echo, args)
end

Dynamic supervisor managing mesh services is named Example2.MeshSupervisor and started using application supervisor:

# lib/example2/application.ex
defmodule Example2.Application do
  use Application

  @impl true
  def start(_type, _args) do
    Supervisor.start_link([Example2.MeshSupervisor],
      strategy: :one_for_one,
      name: Example2.Supervisor
    )
  end
end

Dynamic supervisor Example2.MeshSupervisor will asynchronously start both RPC server and client depending on --erl "-rpc_server? true/false" command line argument:

# lib/mesh_supervisor.ex
defmodule Example2.MeshSupervisor do
  use DynamicSupervisor

  def start_link(init_arg),
    do: DynamicSupervisor.start_link(__MODULE__, init_arg, name: __MODULE__)

  @impl true
  def init(_init_arg) do
    spawn(__MODULE__, :start_mesh, [])
    DynamicSupervisor.init(strategy: :one_for_one)
  end

  def start_mesh() do
    child =
      if rpc_server?() do
        MeshxRpc.attach_telemetry([:example2, Example2.Server])
        {:ok, _id, address} = MeshxConsul.start("service-1")
        Example2.Server.child_spec(address: address)
      else
        MeshxRpc.attach_telemetry([:example2, Example2.Client])
        {:ok, [{:ok, address}]} = MeshxConsul.connect(["service-1"])
        Example2.Client.child_spec(address: address)
      end

    DynamicSupervisor.start_child(__MODULE__, child)
  end

  defp rpc_server?() do
    case :init.get_argument(:rpc_server?) do
      {:ok, [['true']]} -> true
      _ -> false
    end
  end
end

Commands to start server and client nodes are same as in Example 1.

When RPC server node is started mesh service endpoint address is prepared by running MeshxConsul.start("service-1") function:

• mesh service "service-1" is registered with Consul service registry,
• required by service "service-1" workers are stared, including sidecar proxy connecting "service-1" with Consul managed mesh data plane.

Next DynamicSupervisor starts child specified with Example2.Server.child_spec(address: address). Started child worker is a user defined (RPC) server attached to mesh service endpoint address, hence it becomes user mesh service provider that can be:

• accessed by remote mesh upstream clients,
• managed using Consul service mesh control plane.

When RPC client node is started mesh upstream endpoint address is prepared by MeshxConsul.connect("service-1"):

• special "proxy service" is registered with Consul, default service name is prefix "upstream-" concatenated with host name; in this example it is "upstream-h11",
• upstream "service-1" is added to sidecar proxy service "upstream-h11",
• required by proxy service "upstream-h11" workers are stared, including sidecar proxy connecting "upstream-h11" with mesh data plane.

Next DynamicSupervisor starts child specified with Example2.Client.child_spec(address: address). Started child worker is a user defined (RPC) client attached to mesh upstream endpoint address, hence it becomes user mesh upstream client connected to service mesh data plane.

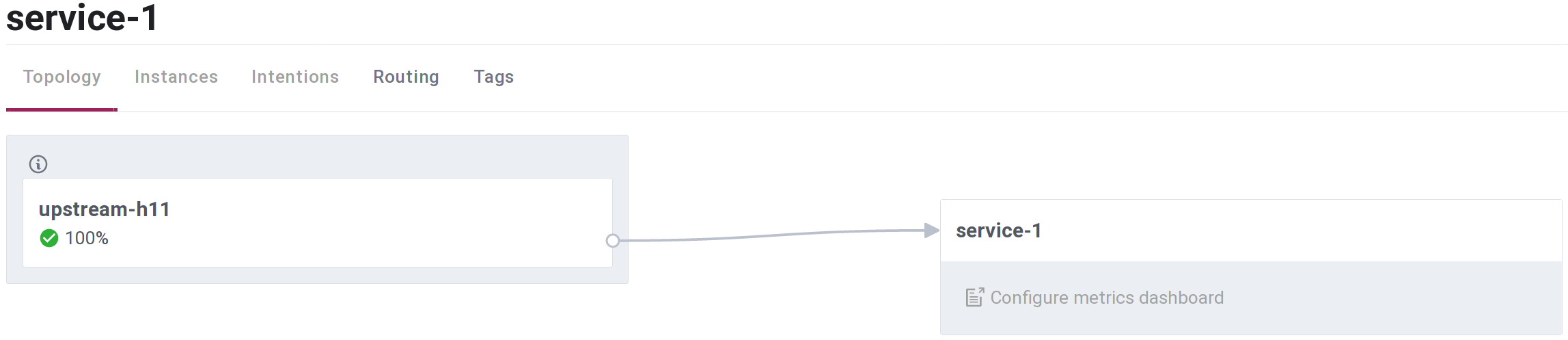

Consul UI screenshot showing connection between upstream-h11 proxy service and service-1:

Common configuration

RPC client and server modules provide child specifications which should be used with user supervisors as shown on examples above. RPC client child_spec can be created directly by accessing MeshxRpc.Client.Pool.child_spec/2 or by using wrapper module MeshxRpc.Client. Similarly RPC server child_spec is available through MeshxRpc.Server.Pool.child_spec/2 or MeshxRpc.Server modules.

Configuration options common to client and server child_spec/2 functions:

• :pool_opts - worker pool options for RPC client and server. Server pool is build using ranch socket acceptor pool. pool_opts correspond in this case to ranch transport options. Client pool is build using poolboy, pool_opts correspond here directly to poolboy options. Users usually should not set any pool_opts for server pools. Options that can be set for RPC client pools:

  • :size - maximum pool size, default 10,
  • :max_overflow - maximum number of workers created if pool is empty,
  • :strategy - :lifo or :fifo, determines whether checked in workers should be placed first or last in the line of available workers. So, :lifo operates like a traditional stack; :fifo like a queue. Default is :lifo.
    • The default value is [].

• :address - Required. Address on which server will listen for requests or client will send requests to. Two address types are supported:

  • ethernet interface address: {:tcp, ip, port}, where ip is defined as tuple (e.g. {127, 0, 0, 1}) and port is integer in the range 1..65535,
  • Unix Domain Socket address: {:uds, path}, where socket path is defined as string, e.g. {:uds, "/tmp/beam.sock"}

• :blk_max_size - user request function arguments are first serialized into binary using function specified with :serialize_mfa option. Binary is then split into smaller blocks send over the wire. Option defines maximum send block byte size. Must be between 200 bytes and 256 MB (200..268_435_456). The default value is 16384.

• :cks_mfa - block checksum function {module, function, argument}. 2-arity function accepting: 1st argument - binary data to calculate checksum, 2nd argument - as set in option argument. Function result should be calculated checksum of binary() type. Example checksum implementation is MeshxRpc.Protocol.Default.checksum/2, using :erlang.crc32/1. To use this function set: [cks_mfa: {MeshxRpc.Protocol.Default, :checksum, []}]. If option is left undefined checksums are not calculated. The default value is nil.

• :conn_ref_mfa - {module, function, argument} function generating connection reference, 0-arity. The default value is {MeshxRpc.Protocol.Default, :conn_ref, []}.

• :deserialize_mfa - {module, function, argument} function used to de-serialize request argument, 3-arity. Function should reverse data serialization process executed by function specified by :serialize_mfa. First function argument is binary data to de-serialize, second is option argument, third is serialization flag generated by :serialize_mfa. Function should return {:ok, deserialized} if successful, {:error, reason} otherwise. The default value is {MeshxRpc.Protocol.Default, :deserialize, []}.

• :hsk_dgt_mfa - {module, function, argument} function used to calculate digest in connection handshake, 2-arity. First argument is binary data for which digest should be calculated, second is option argument. The default value is {MeshxRpc.Protocol.Default, :checksum, []}.

• :node_ref_mfa - {module, function, argument} function generating request node reference, 0-arity. The default value is {MeshxRpc.Protocol.Default, :node_ref, []}.

• :quiet_on_hsk_error? - when connection is established between RPC server and client first step is a two-way handshake. If handshake fails remote node can be notified about failure or failure can be silently discarded. The default value is false.

• :serialize_mfa - {module, function, argument} function used to serialize user request function argument(s), 2-arity. First argument is erlang term that requires serialization, second is option argument. Function should return if successful {:ok, serialized_binary, serialization_flag}. serialization_flag should be one byte integer (0..255). It states how data should be de-serialized and will be passed as third argument to function specified in :deserialize_mfa. In case of error function should return {:error, reason}. The default value is {MeshxRpc.Protocol.Default, :serialize, []}.

• :shared_key - shared key must be same for connecting server and client. Can be used to specify for example API version: shared_key: "api_ver_01". The default value is "".

• :socket_opts - connection socket options. Check :inet.setopts/2 for available settings. The default value is [].

• :svc_ref_mfa - {module, function, argument} function generating request service reference, 0-arity. If not defined, by default service reference will be calculated from: service_id |> to_string() |> String.slice(0..255).

• :telemetry_prefix - specifies prefix used when executing telemetry events. If not defined package name and service module will be used, e.g.: [:meshx_rpc, MyApp.Rpc.Server1].

• :timeout_hsk - handshake timeout. The default value is 5000.

• :timeout_cks - timeout for function calculating block checksums specified by :cks_mfa. The default value is 500.

• :gen_statem_opts - option passed as third argument to :gen_statem.start_link/3 when starting RPC server or client pool worker. The default value is [].

Telemetry

Telemetry events

Telemetry event prefix is defined with :telemetry_prefix configuration option.

Events generated by MeshxRpc:

• :init - emitted only by server when server worker cannot establish socket connection with user provided address terminated with transport solution (e.g. service mesh sidecar proxy),
• :hsk - emitted by both server and client during connection handshake phase,
• :idle - emitted only by client workers when worker is in idle state waiting for user requests,
• :recv and :send - emitted by both client and server workers if there was a problem when receiving or sending request data,
• :call and :cast - emitted by client and server during failed or after successful call/cast request processing.

Telemetry metadata

• :address - connection address, e.g. {:tcp, {127, 0, 0, 1}, 1024},
• :fun_name - request function name, e.g. :echo,
• :fun_req - request function type, can be :call or :cast,
• :hsk_ref - handshake reference, integer(),
• :id - RPC server or client id, e.g. Example2.Client,
• :local - map describing local endpoint using keys: conn_ref, node_ref and svc_ref.
• :remote - as :local but for remote endpoint,
• :req_ref - request reference, integer(),
• :result - execution result. If request execution was successful :result is set to atom :ok, real execution results are not emitted by telemetry. If execution failed, error reason is emitted,
• :socket - socket port used in connection, e.g. #Port<0.19>,
• :state - worker :gen_statem last state, e.g. :reply.

Example request telemetry metadata:

%{
  address: {:tcp, {127, 0, 0, 1}, 65535},
  fun_name: :echo,
  fun_req: :cast,
  hsk_ref: 3490,
  id: Example2.Client,
  local: %{
    conn_ref: <<123, 219, 9, 168>>,
    node_ref: "nonode@nohost",
    svc_ref: "Elixir.Example2.Client"
  },
  remote: %{
    conn_ref: <<66, 9, 108, 5>>,
    node_ref: "nonode@nohost",
    svc_ref: "Elixir.Example2.Server"
  },
  req_ref: 3650,
  result: :ok,
  socket: #Port<0.12863>,
  state: :reply
}

Telemetry metrics

Three metrics types are reported:

• :blocks - reports number of blocks, send and received,
• :size - number of bytes, send and received,
• :time - approximate time in microseconds spend on consecutive request processing steps.

:time metrics:

• :ser and :dser - serialization and de-serialization time,
• :exec - request function execution time,
• :hsk - handshake time,
• :idle - worker idle time,
• :recv and :send - time spent on request data receiving and sending.

Example telemetry metrics:

%{
  blocks: %{recv: 1, send: 1},
  size: %{recv: 14, send: 40},
  time: [
    dser: 0,
    exec: 1038,
    hsk: 0,
    idle: 101101,
    recv: 12,
    send: 102,
    ser: 1
  ]
}
