F3RP70 Support

This is the base Nerves System configuration for the F3RP70, e-RT3 Products, OS-free CPU module.

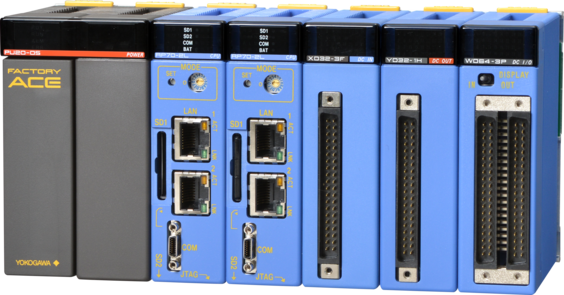

^{[Image is provided by Yokogawa Electric Corporation](https://www.yokogawa.com/)}

Feature	Description
CPU	ARM Cortex-A9 MPCore (Dual) 866 MHz
Memory	1 GB SDRAM
Storage	256MB Flash and Two SD slots (SD1/SD2)
Linux kernel	4.14.164 w/ 4.14.164-rt73 and ert3xlnx patch
IEx terminal	UART ttySP0
GPIO, I2C, SPI	No
ADC	No
PWM	No
UART	ttySP0
Display	No
Camera	No
Ethernet	Two 1Gbps (eth0 and eth1)
WiFi	No
Bluetooth	No
Audio	No
RTC	Yes w/ battery

Using

This port currently only runs off a SD card.

If you need custom modifications to this system for your device, clone this repository and update as described in Making custom systems

Networking

The board has two 1 Gbps Ethernet interfaces. Here's an example :vintage_net configuration that enables both of them:

config :vintage_net,
  config: [
    {"eth0",
     %{
       type: VintageNetEthernet,
       ipv4: %{
         method: :static,
         address: "192.168.3.72",
         prefix_length: 24,
         gateway: "192.168.3.1",
         name_servers: ["192.168.3.1"]
       }
     }},
    {"eth1",
     %{
       type: VintageNetEthernet,
       ipv4: %{method: :dhcp}
     }}
  ]
