Emerge.UI.Transform (Emerge v0.2.1)

Transform and opacity helpers.

Emerge.UI.Transform changes how an element is painted without changing how a row, column, or generic container measures and places that element.

Use:

move_x/1 and move_y/1 to offset the painted element in logical pixels
rotate/1 to turn an element around its center
scale/1 to grow or shrink an element around its center
alpha/1 to reduce opacity for the rendered element subtree

Layout vs Paint

Transforms do not reserve extra layout space. The element keeps its normal layout slot, then the transform is applied when rendering.

This is useful for lifted cards, pressed states, emphasis, decorative tilt, and motion styles that should not push siblings around.

Interaction

Pointer hit testing follows the transformed shape that the user sees on screen, not the pre-transform slot. Hover, press, and move handlers stay attached to the painted result.

Opacity

alpha/1 affects the rendered element subtree. Background, border, text, images, and children all inherit that opacity while layout stays unchanged.

Examples

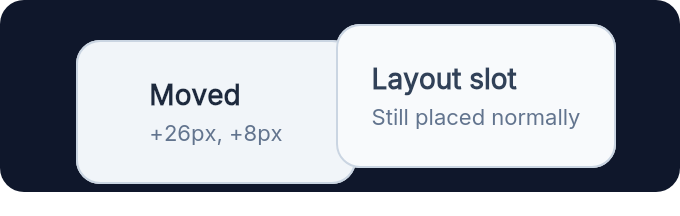

Translation moves the painted element while the row still keeps its original slot:

row(
  [
    width(px(340)),
    spacing(16),
    padding(12),
    Background.color(color(:slate, 900)),
    Border.rounded(12)
  ],
  [
    el(
      [
        width(px(140)),
        height(px(72)),
        Transform.move_x(26),
        Transform.move_y(8),
        Background.color(color(:slate, 100)),
        Border.rounded(12),
        Border.width(1),
        Border.color(color(:slate, 300)),
        Font.color(color(:slate, 800))
      ],
      column([center_x(), center_y(), spacing(4)], [
        el([Font.size(14), Font.semi_bold()], text("Moved")),
        el([Font.size(11), Font.color(color(:slate, 500))], text("+26px, +8px"))
      ])
    ),
    el(
      [
        width(px(140)),
        height(px(72)),
        Background.color(color(:slate, 50)),
        Border.rounded(12),
        Border.width(1),
        Border.color(color(:slate, 300)),
        Font.color(color(:slate, 700))
      ],
      column([center_x(), center_y(), spacing(4)], [
        el([Font.size(14), Font.semi_bold()], text("Layout slot")),
        el([Font.size(11), Font.color(color(:slate, 500))], text("Still placed normally"))
      ])
    )
  ]
)

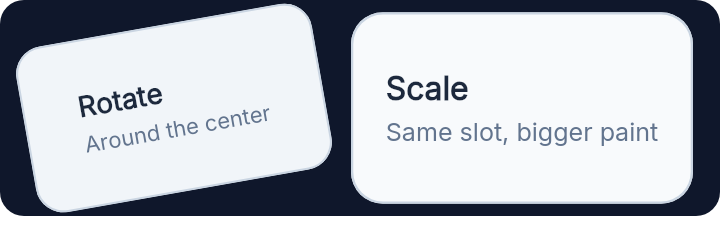

Rotation and scale both happen around the element center:

row(
  [
    width(px(360)),
    spacing(24),
    padding(12),
    Background.color(color(:slate, 900)),
    Border.rounded(12)
  ],
  [
    el(
      [
        width(px(150)),
        height(px(84)),
        Transform.rotate(-10),
        Background.color(color(:slate, 100)),
        Border.rounded(14),
        Border.width(1),
        Border.color(color(:slate, 300)),
        Font.color(color(:slate, 800))
      ],
      column([center_x(), center_y(), spacing(4)], [
        el([Font.size(14), Font.semi_bold()], text("Rotate")),
        el([Font.size(11), Font.color(color(:slate, 500))], text("Around the center"))
      ])
    ),
    el(
      [
        width(px(150)),
        height(px(84)),
        Transform.scale(1.14),
        Background.color(color(:slate, 50)),
        Border.rounded(14),
        Border.width(1),
        Border.color(color(:slate, 300)),
        Font.color(color(:slate, 800))
      ],
      column([center_x(), center_y(), spacing(4)], [
        el([Font.size(14), Font.semi_bold()], text("Scale")),
        el(
          [Font.size(11), Font.color(color(:slate, 500))],
          text("Same slot, bigger paint")
        )
      ])
    )
  ]
)

Rendered rotate and scale transform example

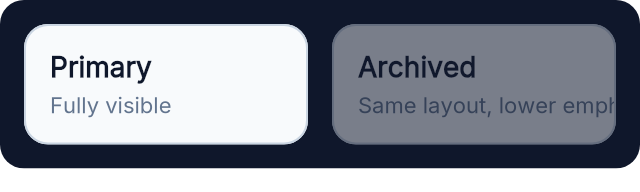

Opacity is useful for de-emphasized branches without changing layout:

row(
  [
    width(px(320)),
    spacing(12),
    padding(12),
    Background.color(color(:slate, 900)),
    Border.rounded(12)
  ],
  [
    el(
      [
        width(fill()),
        padding(12),
        Background.color(color(:slate, 50)),
        Border.rounded(12),
        Border.width(1),
        Border.color(color(:slate, 300)),
        Font.color(color(:slate, 900))
      ],
      column([spacing(4)], [
        el([Font.size(14), Font.semi_bold()], text("Primary")),
        el([Font.size(11), Font.color(color(:slate, 500))], text("Fully visible"))
      ])
    ),
    el(
      [
        width(fill()),
        padding(12),
        Background.color(color(:slate, 50)),
        Border.rounded(12),
        Border.width(1),
        Border.color(color(:slate, 300)),
        Transform.alpha(0.45),
        Font.color(color(:slate, 900))
      ],
      column([spacing(4)], [
        el([Font.size(14), Font.semi_bold()], text("Archived")),
        el([Font.size(11), Font.color(color(:slate, 500))], text("Same layout, lower emphasis"))
      ])
    )
  ]
)

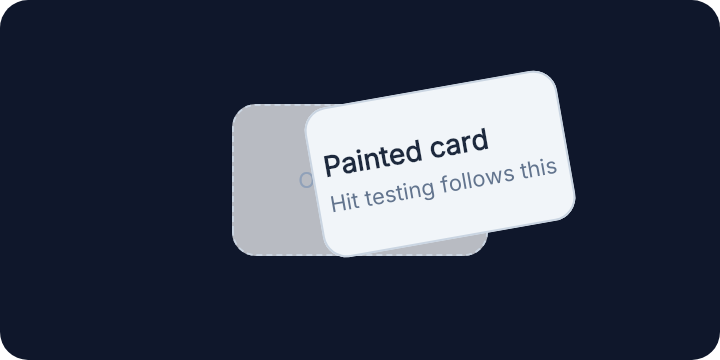

The faint outline below marks the original slot. The transformed card is what the user sees and what pointer hit testing follows:

el(
  [
    width(px(360)),
    height(px(180)),
    padding(20),
    Background.color(color(:slate, 900)),
    Border.rounded(14)
  ],
  el(
    [
      width(px(128)),
      height(px(76)),
      center_x(),
      center_y(),
      Background.color(color_rgba(248, 250, 252, 0.72)),
      Border.rounded(12),
      Border.width(1),
      Border.color(color(:slate, 300)),
      Border.dashed(),
      Font.color(color(:slate, 400)),
      Nearby.in_front(
        el(
          [
            width(fill()),
            height(fill()),
            Transform.move_x(40),
            Transform.move_y(-8),
            Transform.rotate(-10),
            Background.color(color(:slate, 100)),
            Border.rounded(12),
            Border.width(1),
            Border.color(color(:slate, 300)),
            Font.color(color(:slate, 800))
          ],
          column([center_x(), center_y(), spacing(4)], [
            el([Font.size(14), Font.semi_bold()], text("Painted card")),
            el(
              [Font.size(11), Font.color(color(:slate, 500))],
              text("Hit testing follows this")
            )
          ])
        )
      )
    ],
    el([center_x(), center_y(), Font.size(11)], text("Original slot"))
  )
)

Rendered layout slot versus transformed visual example

Summary

Types

numeric_attr()

t()

Functions

alpha(value)

Set opacity for the rendered element subtree.

move_x(value)

Move the painted element on the X axis.

move_y(value)

Move the painted element on the Y axis.

rotate(value)

Rotate the painted element in degrees around its center.

scale(value)

Scale the painted element uniformly around its center.

Types

numeric_attr()

@type numeric_attr() ::
  {:move_x, number()}
  | {:move_y, number()}
  | {:rotate, number()}
  | {:scale, number()}
  | {:alpha, number()}

t()

@type t() :: numeric_attr()

Functions

alpha(value)

@spec alpha(number()) :: {:alpha, number()}

Set opacity for the rendered element subtree.

Use values between 0.0 and 1.0, where 0.0 is fully transparent and 1.0 is fully opaque.

Example

This dims the whole card, including its text and border.

el(
  [
    padding(12),
    Transform.alpha(0.45),
    Background.color(color(:white)),
    Border.rounded(12),
    Border.width(1),
    Border.color(color(:slate, 200))
  ],
  text("Archived")
)

move_x(value)

@spec move_x(number()) :: {:move_x, number()}

Move the painted element on the X axis.

Positive values move right. Negative values move left. The layout slot does not move.

Example

el(
  [
    width(px(120)),
    height(px(64)),
    Transform.move_x(18),
    Background.color(color(:sky, 600)),
    Border.rounded(12),
    Font.color(color(:white))
  ],
  text("Shifted")
)

move_y(value)

@spec move_y(number()) :: {:move_y, number()}

Move the painted element on the Y axis.

Positive values move down. Negative values move up. The layout slot does not move.

Example

A subtle downward nudge is useful for pressed or resting floating-card states.

el(
  [
    width(px(120)),
    height(px(64)),
    Transform.move_y(6),
    Background.color(color(:emerald, 600)),
    Border.rounded(12),
    Font.color(color(:white))
  ],
  text("Lowered")
)

rotate(value)

@spec rotate(number()) :: {:rotate, number()}

Rotate the painted element in degrees around its center.

Rotation does not change the element's layout slot.

Example

el(
  [
    width(px(140)),
    height(px(72)),
    Transform.rotate(-8),
    Background.color(color(:violet, 600)),
    Border.rounded(12),
    Font.color(color(:white))
  ],
  text("Tilted note")
)

scale(value)

@spec scale(number()) :: {:scale, number()}

Scale the painted element uniformly around its center.

1.0 keeps the original size, values above 1.0 enlarge, and values between 0.0 and 1.0 shrink.

Example

el(
  [
    width(px(140)),
    height(px(72)),
    Transform.scale(1.1),
    Background.color(color(:amber, 500)),
    Border.rounded(12),
    Font.color(color(:slate, 950))
  ],
  text("Emphasized")
)
